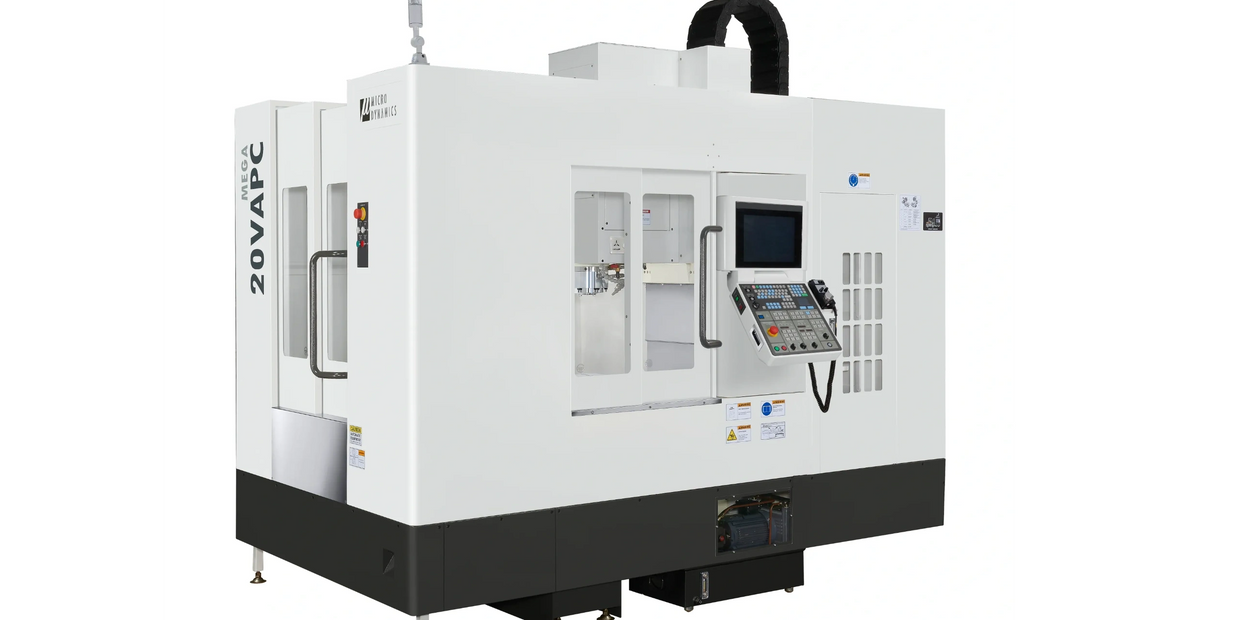

| TRAVELS | |
| X Axis | 24″ |
| Y Axis | 20″ |
| Z Axis | 20″ |
| X Axis Rapid & (Acceleration) | 2,047 ipm (0.8 G) |
| Y Axis Rapid & (Acceleration) | 2,047 ipm (0.8 G) |
| Z Axis Rapid & (Acceleration) | 1,889 ipm (0.8 G) |
| Cutting Feed Rate | 0 ∼ 787 ipm |
| Spindle Nose | CT (BT) – 40 |
| Spindle Motor Power | 33 / 41 hp |
| Spindle Speed | 50 ∼ 15,000 rpm (Opt. 20,000) |
| Tool Stations | 40 ~ Random Selections |
Standard Features
- 40 Station High Speed Automatic Tool Changer
- Fully Enclosed Splash Guards
- Chip Management System with Scraper Type Chip Conveyor and Wash Down
- Flood Coolant and Tool Tip Air Blow
- Coolant Thru Spindle Capable
- 15,000 RPM with 41 HP Integral Spindle capable of achieving 104 FT-Lbs of torque
- Built-in Integrated Automation setup using Ethernet/IP
- Rigid Tapping to 6,000 RPM
- DYPEC Thermal Compensation
- 20 GB Of Data Server Memory
- 2MB Main Memory ** (Capable of running on CF Card 64GB)
- Multi Axis CRT/Operator Panel for better Ergonomics
- Powerful Mitsubishi M830 windows-based CNC Control
- Heavily ribbed, FC300 Cast Iron Structure, Meehanite processed, FEA Analyzed
- High Torque Integral Spindle Motor from ATE is rated at 41 HP and delivers 104 Ft-Lbs of torque
- Advanced 15,000 RPM Spindle couple with the Integral Motor for faster machining speeds
- 5 Sec Spindle Acceleration to 12,000 rpm for less Idle Time
- Spindle Oil Cooler
- DYPEC Thermal Compensation system to maintain accuracy from the effects of thermal growth
- Large Size 30mm (X) and 35mm (Y, Z) Cross Roller Linear Rails for extra stiffening
- Large Diameter Ballscrews 32mm X, 40mm Y and Z axis
- High Horsepower Servos generating 3,942 lbs Thrust X, Y and 7,548 Lbs in Z for Higher Metal Removal Rates
- High rapid rates of 2,047 X, Y and 1,889 Z rival most other Vertical Machining Centers
- SSS Gen 4 High Speed Super Smooth Surface for Mold and Die
- 2,700 Block Look Ahead
- 15” Touchscreen display with built in “Operator Convenience” HMI
- DYCON on board simple conversational programming
- Compact Floor Space 94” (including chip Conveyor) x 88” depth
